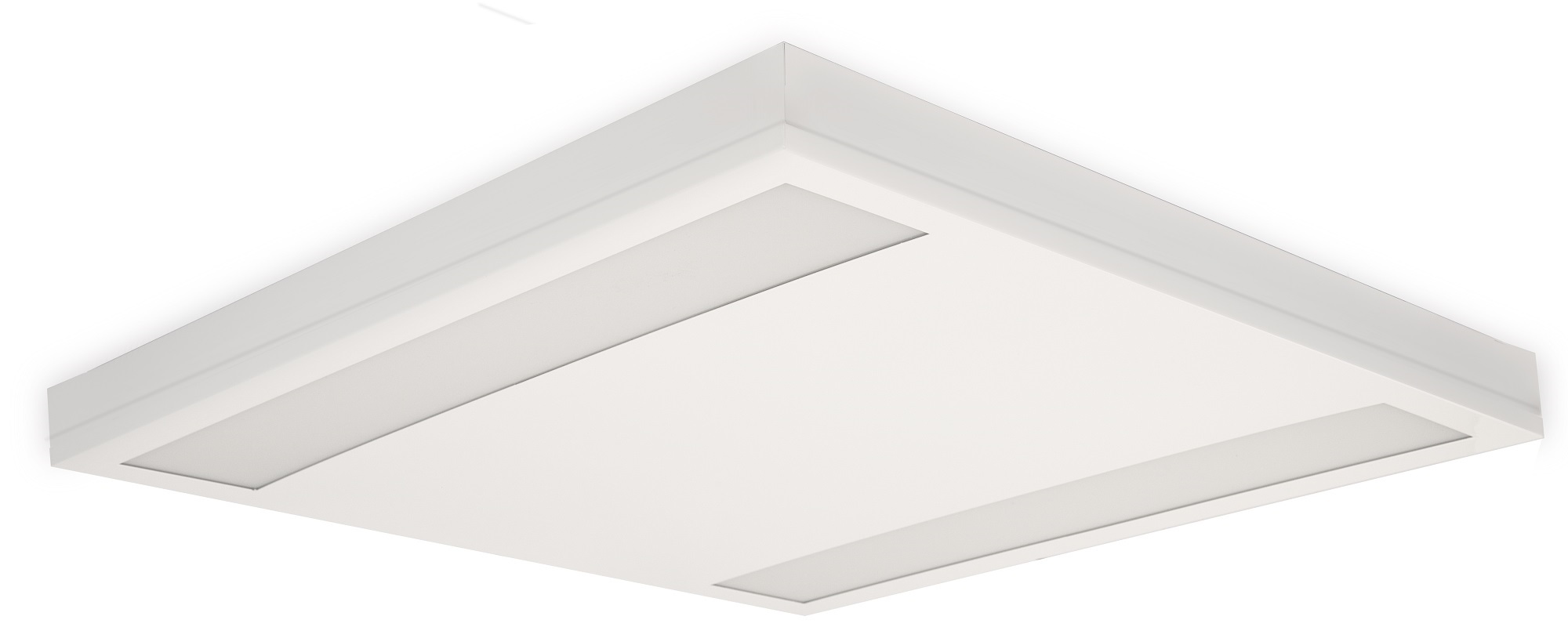

SURFACED LED LUMINAIRE

Description:
Surfaced luminaire with high efficiency LED modules suitable for installation on ceilings. The combination of high-efficiency LED modules and long service lifetime
driver delivers up to 4200 luminaire lumens at an efficacy 119 lm/W and a Median Service Life L80B10 of 60,000 hours.

Applications:
General indoor lighting for offices, public buildings shopping malls, schools, supermarkets, etc.

Options on request:
Dimming 1-10V
DALI
Emergency 1 or 3 hours

Construction:
Base - Cold rolled steel 0,5mm with white epoxy polyester powder coating for maximum reflection and excellent gloss finish
Light source - Highly efficient mid-power light engine (170lm/W)
Gear - Constant Current Driver 220-240V/50-60Hz
Diffuser - High Light Transmission PMMA
Wires - Single Core with Heat resistant PVC insulation at 105oC

Directives and Standards:
ISO 9001:2015 Quality Management System
2014/35/EU Low Voltage Directive
2014/30/EU Electromagnetic Compatibility Directive
2011/65/EU RoHS Restrictions of Hazardous Substances Directive
EN 60598-1:2015 Luminaires. General requirements and tests
EC Declaration of Conformity

Technical Information
ON/OFF
Code
Description
Light Sources
Watt
Volts
Hz
Power Factor
Width (mm)
Length (mm)
EM 1 hr
EM 3 hrs
820-600 CYFELCO SUR-2WND-34W-5030LM-3000K-L60W60H57 2 34 220-240 50-60 0.97 600 600 820-624 820-636
820-601 CYFELCO SUR-2WND-34W-5290LM-4000K-L60W60H57 2 34 220-240 50-60 0.97 600 600 820-625 820-637
820-602 CYFELCO SUR-2WND-34W-5430LM-5000K-L60W60H57 2 34 220-240 50-60 0.97 600 600 820-626 820-638
820-603 CYFELCO SUR-2WND-34W-5350LM-6500K-L60W60H57 2 34 220-240 50-60 0.97 600 600 820-627 820-639
820-604 CYFELCO SUR-3WND-35W-5550LM-3000K-L60W60H57 3 35 220-240 50-60 0.97 600 600 820-628 820-640
820-605 CYFELCO SUR-3WND-35W-5820LM-4000K-L60W60H57 3 35 220-240 50-60 0.97 600 600 820-629 820-641
820-606 CYFELCO SUR-3WND-35W-5985LM-5000K-L60W60H57 3 35 220-240 50-60 0.97 600 600 820-630 820-642
820-607 CYFELCO SUR-3WND-35W-5895LM-6500K-L60W60H57 3 35 220-240 50-60 0.97 600 600 820-631 820-643
820-608 CYFELCO SUR-WND-34W-5030LM-3000K-L30W120H57 1 34 220-240 50-60 0.97 300 600 820-632 820-644
820-609 CYFELCO SUR-WND-34W-5290LM-4000K-L30W120H57 1 34 220-240 50-60 0.97 300 600 820-633 820-645
820-610 CYFELCO SUR-WND-34W-5430LM-5000K-L30W120H57 1 34 220-240 50-60 0.97 300 600 820-634 820-646
820-611 CYFELCO SUR-WND-34W-5350LM-6500K-L30W120H57 1 34 220-240 50-60 0.97 300 600 820-635 820-647
Dimming 1-10V
Code
Description
Light Sources
Watt
Volts
Hz
Power Factor
Width (mm)
Length (mm)
EM 1 hr
EM 3 hrs
820-672 CYFELCO SUR-2WND-34W-5030LM-3000K-L60W60H57 1-10V 2 34 220-240 50-60 0.97 600 600 820-684 820-696
820-673 CYFELCO SUR-2WND-34W-5290LM-4000K-L60W60H57 1-10V 2 34 220-240 50-60 0.97 600 600 820-685 820-697
820-674 CYFELCO SUR-2WND-34W-5430LM-5000K-L60W60H57 1-10V 2 34 220-240 50-60 0.97 600 600 820-686 820-698
820-675 CYFELCO SUR-2WND-34W-5350LM-6500K-L60W60H57 1-10V 2 34 220-240 50-60 0.97 600 600 820-687 820-699
820-676 CYFELCO SUR-3WND-35W-5550LM-3000K-L60W60H57 1-10V 3 35 220-240 50-60 0.97 600 600 820-688 820-256
820-677 CYFELCO SUR-3WND-35W-5820LM-4000K-L60W60H57 1-10V 3 35 220-240 50-60 0.97 600 600 820-689 820-257
820-678 CYFELCO SUR-3WND-35W-5985LM-5000K-L60W60H57 1-10V 3 35 220-240 50-60 0.97 600 600 820-690 820-258
820-679 CYFELCO SUR-3WND-35W-5895LM-6500K-L60W60H57 1-10V 3 35 220-240 50-60 0.97 600 600 820-691 820-259
820-680 CYFELCO SUR-WND-34W-5030LM-3000K-L30W120H57 1-10V 1 34 220-240 50-60 0.97 300 600 820-692 820-260
820-681 CYFELCO SUR-WND-34W-5290LM-4000K-L30W120H57 1-10V 1 34 220-240 50-60 0.97 300 600 820-693 820-261
820-682 CYFELCO SUR-WND-34W-5430LM-5000K-L30W120H57 1-10V 1 34 220-240 50-60 0.97 300 600 820-694 820-262
820-683 CYFELCO SUR-WND-34W-5350LM-6500K-L30W120H57 1-10V 1 34 220-240 50-60 0.97 300 600 820-695 820-263
DALI
Code
Description
Light Sources
Watt
Volts
Hz
Power Factor
Width (mm)
Length (mm)
EM 1 hr
EM 3 hrs
820-612 CYFELCO SUR-2WND-34W-5030LM-3000K-L60W60H57 DALI 2 34 220-240 50-60 0.97 600 600 820-648 820-660
820-613 CYFELCO SUR-2WND-34W-5290LM-4000K-L60W60H57 DALI 2 34 220-240 50-60 0.97 600 600 820-649 820-661
820-614 CYFELCO SUR-2WND-34W-5430LM-5000K-L60W60H57 DALI 2 34 220-240 50-60 0.97 600 600 820-650 820-662
820-615 CYFELCO SUR-2WND-34W-5350LM-6500K-L60W60H57 DALI 2 34 220-240 50-60 0.97 600 600 820-651 820-663
820-616 CYFELCO SUR-3WND-35W-5550LM-3000K-L60W60H57 DALI 3 35 220-240 50-60 0.97 600 600 820-652 820-664
820-617 CYFELCO SUR-3WND-35W-5820LM-4000K-L60W60H57 DALI 3 35 220-240 50-60 0.97 600 600 820-653 820-665
820-618 CYFELCO SUR-3WND-35W-5985LM-5000K-L60W60H57 DALI 3 35 220-240 50-60 0.97 600 600 820-654 820-666
820-619 CYFELCO SUR-3WND-35W-5895LM-6500K-L60W60H57 DALI 3 35 220-240 50-60 0.97 600 600 820-655 820-667
820-620 CYFELCO SUR-WND-34W-5030LM-3000K-L30W120H57 DALI 1 34 220-240 50-60 0.97 300 600 820-656 820-668
820-621 CYFELCO SUR-WND-34W-5290LM-4000K-L30W120H57 DALI 1 34 220-240 50-60 0.97 300 600 820-657 820-669
820-622 CYFELCO SUR-WND-34W-5430LM-5000K-L30W120H57 DALI 1 34 220-240 50-60 0.97 300 600 820-658 820-670
820-623 CYFELCO SUR-WND-34W-5350LM-6500K-L30W120H57 DALI 1 34 220-240 50-60 0.97 300 600 820-659 820-671
