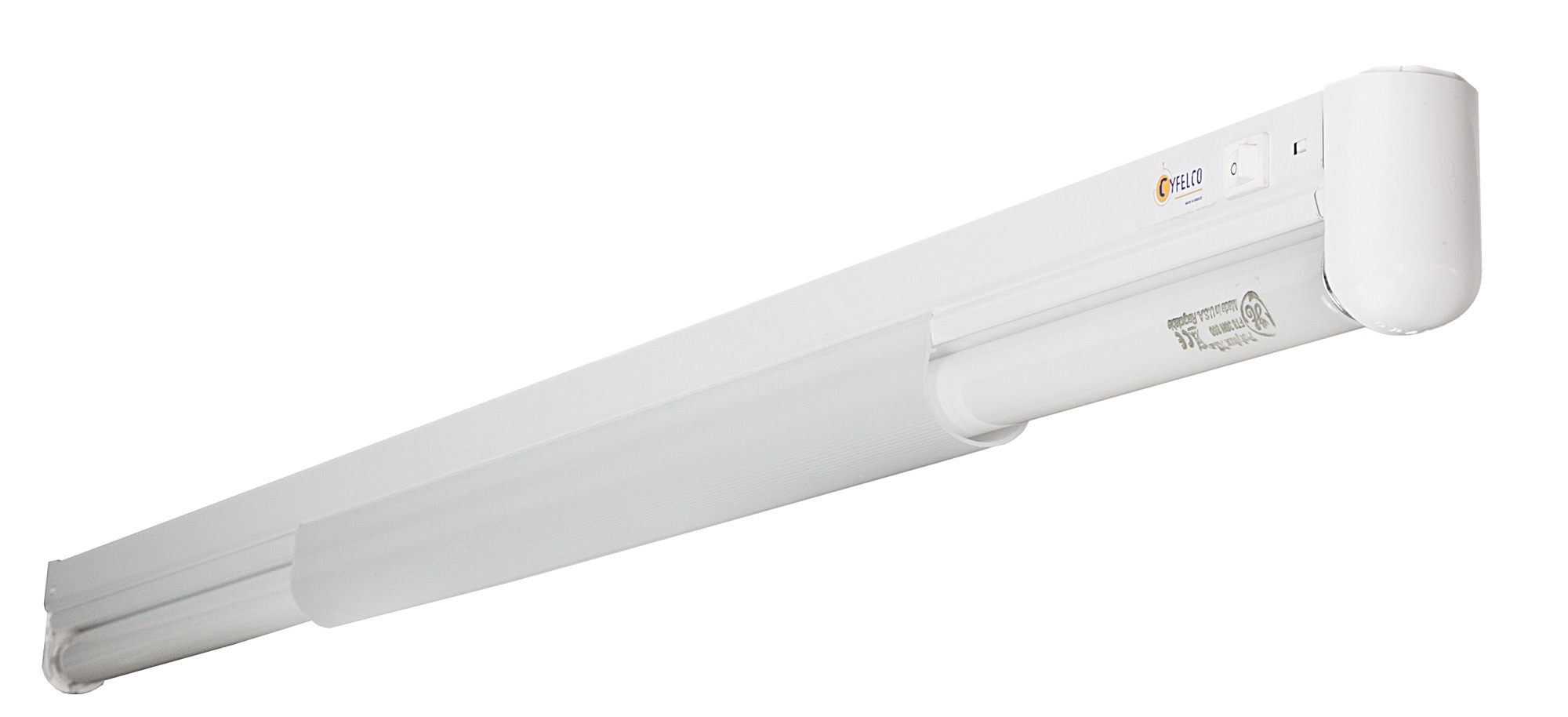

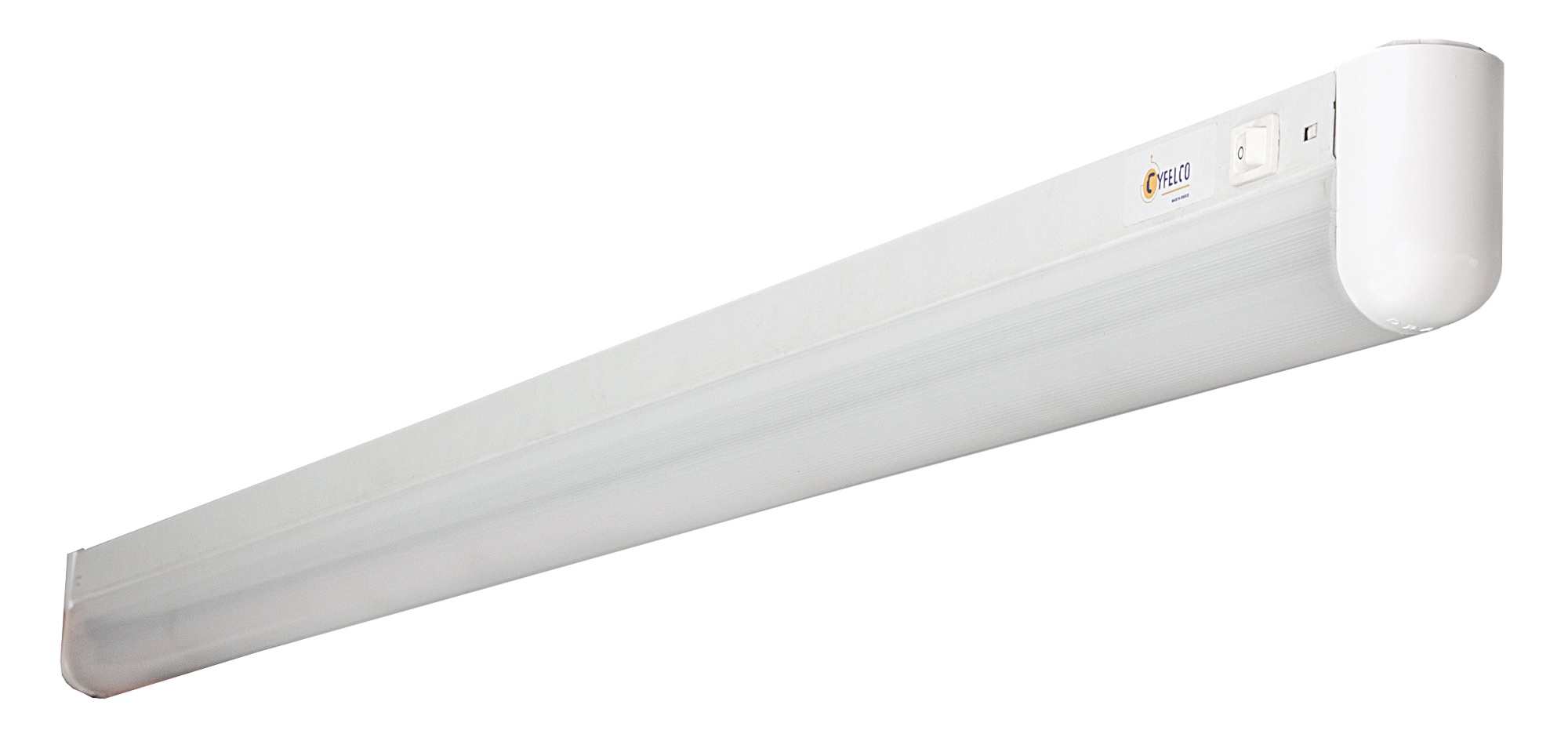

MIRROR LIGHT FOR T8 LAMPS





Description:
High quality mirror light for T8 lamps. It
incorporates an on/off switch for operation.

Construction:
Base and cover - Cold rolled steel 0,5mm with white epoxy powder coating for maximum reflection and excellent gloss finish
Gear - Magnetic ballast
Wires - Single Core with Heat resistant PVC insulation at 105oC
Lamp holders - Self extinguish polycarbonate resin with UV protection
Diffuser - From polycarbonate resin, flexible and durable

Applications:
Bathrooms, corridors, utility rooms, cupboard
underlight etc.

Options on request:
HPF With Capacitor
HF High Frequency Gear
Dimming 1-10V
DALI
Emergency 2 or 3 Hours, Maintained or Non maintained

Directives and Standards:
ISO 9001:2015 Quality Management System
2014/35/EU Low Voltage Directive
2014/30/EU Electromagnetic Compatibility Directive
2011/65/EU RoHS Restrictions of Hazardous Substances Directive
EN 60598-1:2015 Luminaires. General requirements and tests
EC Declaration of Conformity

Technical Information
ON/OFF MAGNETIC BALLAST
`
Code
Description
No of Lamps
Watt
Volts
Hz
Capacitor (μF)
Length (mm)
804-001 CYFELCO MIRRORL 1X8W LPF 1 8 230 50 0.1 344
804-002 CYFELCO MIRRORL 1X15W LPF 1 15 230 50 0.1 499
804-003 CYFELCO MIRRORL 1X30W LPF 1 30 230 50 0.1 950
ON/OFF ELECTRONIC BALLAST
`
Code
Description
No of Lamps
Watt
Volts
Hz
Power Factor
Length (mm)
Maintained EM 2 hr
Maintained EM 3 hrs
Non Maintained EM 2 hr
Non Maintained EM 3 hrs
804-016 CYFELCO MIRRORL 1X18W HF 1 18 220-240 50 Yes 640 - - - -
804-017 CYFELCO MIRRORL 1X36W HF 1 36 220-240 50 Yes 1254 804-030 804-028 804-031 804-034
804-018 CYFELCO MIRRORL 1X58W HF 1 58 220-240 50 Yes 1556 804-033 804-029 804-032 804-035
Dimming 1-10V
`
Code
Description
No of Lamps
Watt
Volts
Hz
Power Factor
Length (mm)
Maintained EM 2 hr
Maintained EM 3 hrs
Non Maintained EM 2 hr
Non Maintained EM 3 hrs
804-036 CYFELCO MIRRORL 1X18W DIM 1 18 220-240 50 Yes 640 - - - -
804-037 CYFELCO MIRRORL 1X36W DIM 1 36 220-240 50 Yes 1254 804-040 804-043 804-046 804-049
804-038 CYFELCO MIRRORL 1X58W DIM 1 58 220-240 50 Yes 1556 804-041 804-044 804-047 804-050
DALI
`
Code
Description
No of Lamps
Watt
Volts
Hz
Power Factor
Length (mm)
Maintained EM 2 hr
Maintained EM 3 hrs
Non Maintained EM 2 hr
Non Maintained EM 3 hrs
804-051 CYFELCO MIRRORL 1X18W DALI 1 18 220-240 50 Yes 640 - - - -
804-052 CYFELCO MIRRORL 1X36W DALI 1 36 220-240 50 Yes 1254 804-055 804-058 804-061 804-064
804-053 CYFELCO MIRRORL 1X58W DALI 1 58 220-240 50 Yes 1556 804-056 804-059 804-062 804-065
