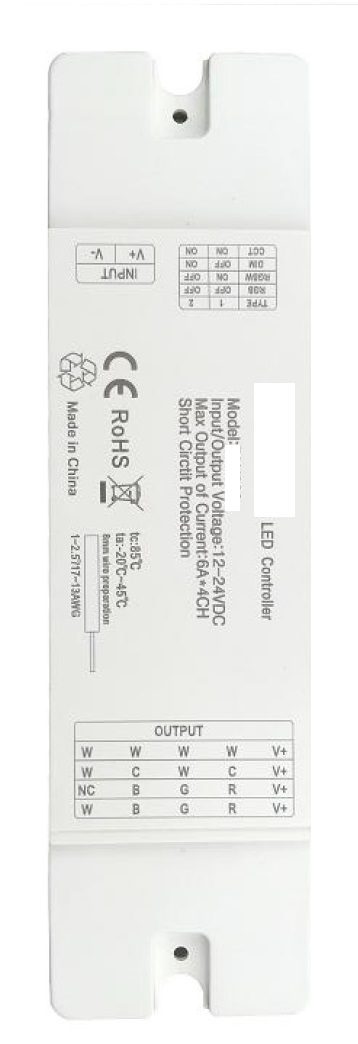

Designed as 4 in 1 controller for DIM/CCT/RGB/RGBW constant voltage LED lights.
Designed as 4 in 1 controller for DIM/CCT/RGB/RGBW constant voltage LED lights.
DC12-24V, four channels output, Max. load current: 4CH*6A; Max. load power: 288W/12V; 576W/24V.
Adopts RF remote control, no need line-of-sight. Control range up to 20 meters.
Wireless-sync-control in both static color and dynamic modes, unlimited by remote control distance.
Batch-operation is available for RF code matching/clearing between remote control and receivers.
Memory function, each time power-on reserve the mode which stop in the last power-off.
Perfect control effect, including 1024 static colors(RGB/RGBW) and soft dim function.
The brightness of static color is adjustable, 1024 levels in total; the speed of dynamic changes is
adjustable, 100 levels in total.
Long-press the brightness and speed key can get the fast adjustment, convenient for operation.
Short circuit protection.
Warranty of this product is three years, exclude the artificial situation of damaged or overload working.
INSTALLATION INSTRUCTIONS
|
