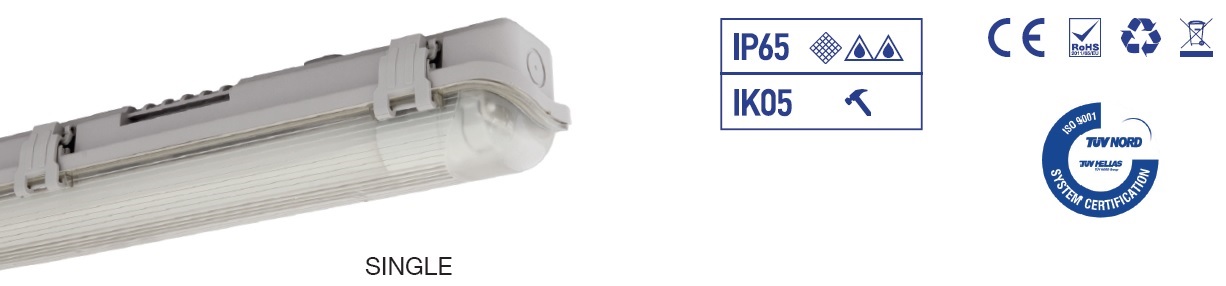

Weatherproof Luminaire designed for use with T8 LED Tubes. The luminaire is suitable for parking and outdoor areas where it provides the necessary weatherproof IP65 protection. The light fitting is prewired to operate double ended T8 LED Tubes of energy class A. Conversion to single ended T8 LED Tube operation can be achieved with the use of the included extra cable.
Material used for the body is ABS and the diffuser is made of polycarbonate. The luminaire it is supplied with ceiling brackets and cable gland for easy installation.
On request stainless steel clips are available

Directives and Standards

ISO 9001:2015 Quality Management System
2014/35/EU Low Voltage Directive
2014/30/EU Electromagnetic Compatibility Directive
2011/65/EU RoHS Restrictions of Hazardous Substances Directive
EN 60598-1:2015 Luminaires General requirements and tests
Stainless Steel Clips

Available on request

Code
Description
Nominal Length (mm)
No of Lamps
Included Lamps
IP Rating
IK Rating
Protection Class
Individual Box QTY
Master Box QTY
951-039 CYFELCO WP CE118 RET LED 665 1X9W - IP65 IK05 CLASS II 1 20
951-040 CYFELCO WP CE136 RET LED 1277 1X18W - IP65 IK05 CLASS II 1 12
951-041 CYFELCO WP CE158 RET LED 1577 1X24W - IP65 IK05 CLASS II 1 12
951-042 CYFELCO WP CE218 RET LED 665 2X9W - IP65 IK05 CLASS II 1 16
951-043 CYFELCO WP CE236 RET LED 1277 2X18W - IP65 IK05 CLASS II 1 10
951-044 CYFELCO WP CE258 RET LED 1577 2X24W - IP65 IK05 CLASS II 1 10
951-045 CYFELCO WPE118 RET LED T8 865 665 1X9W 901-002 IP65 IK05 CLASS II 1 20
951-046 CYFELCO WPE136 RET LED T8 865 1277 1X18W 901-004 IP65 IK05 CLASS II 1 12
951-047 CYFELCO WPE158 RET LED T8 865 1577 1X24W 901-006 IP65 IK05 CLASS II 1 12
951-048 CYFELCO WPE218 RET LED T8 865 665 2X9W 901-002 IP65 IK05 CLASS II 1 16
951-049 CYFELCO WPE236 RET LED T8 865 1277 2X18W 901-004 IP65 IK05 CLASS II 1 10
951-050 CYFELCO WPE258 RET LED T8 865 1577 2X24W 901-006 IP65 IK05 CLASS II 1 10
951-051 CYFELCO WPE118 RET LED T8 840 665 1X9W 901-001 IP65 IK05 CLASS II 1 20
951-052 CYFELCO WPE136 RET LED T8 840 1277 1X18W 901-003 IP65 IK05 CLASS II 1 12
951-053 CYFELCO WPE158 RET LED T8 840 1577 1X24W 901-005 IP65 IK05 CLASS II 1 12
951-054 CYFELCO WPE218 RET LED T8 840 665 2X9W 901-001 IP65 IK05 CLASS II 1 16
951-055 CYFELCO WPE236 RET LED T8 840 1277 2X18W 901-003 IP65 IK05 CLASS II 1 10
951-056 CYFELCO WPE258 RET LED T8 840 1577 2X24W 901-005 IP65 IK05 CLASS II 1 10
951-007 CYFELCO SS CLIPS C WP1



Single packaging

Light fitting with cable gland
Plastic clips
Ceiling brackets
Suspension Hooks
Wire for conversion to single ended Led T8 Lamps
Stainless Steel Clips

Available on request
