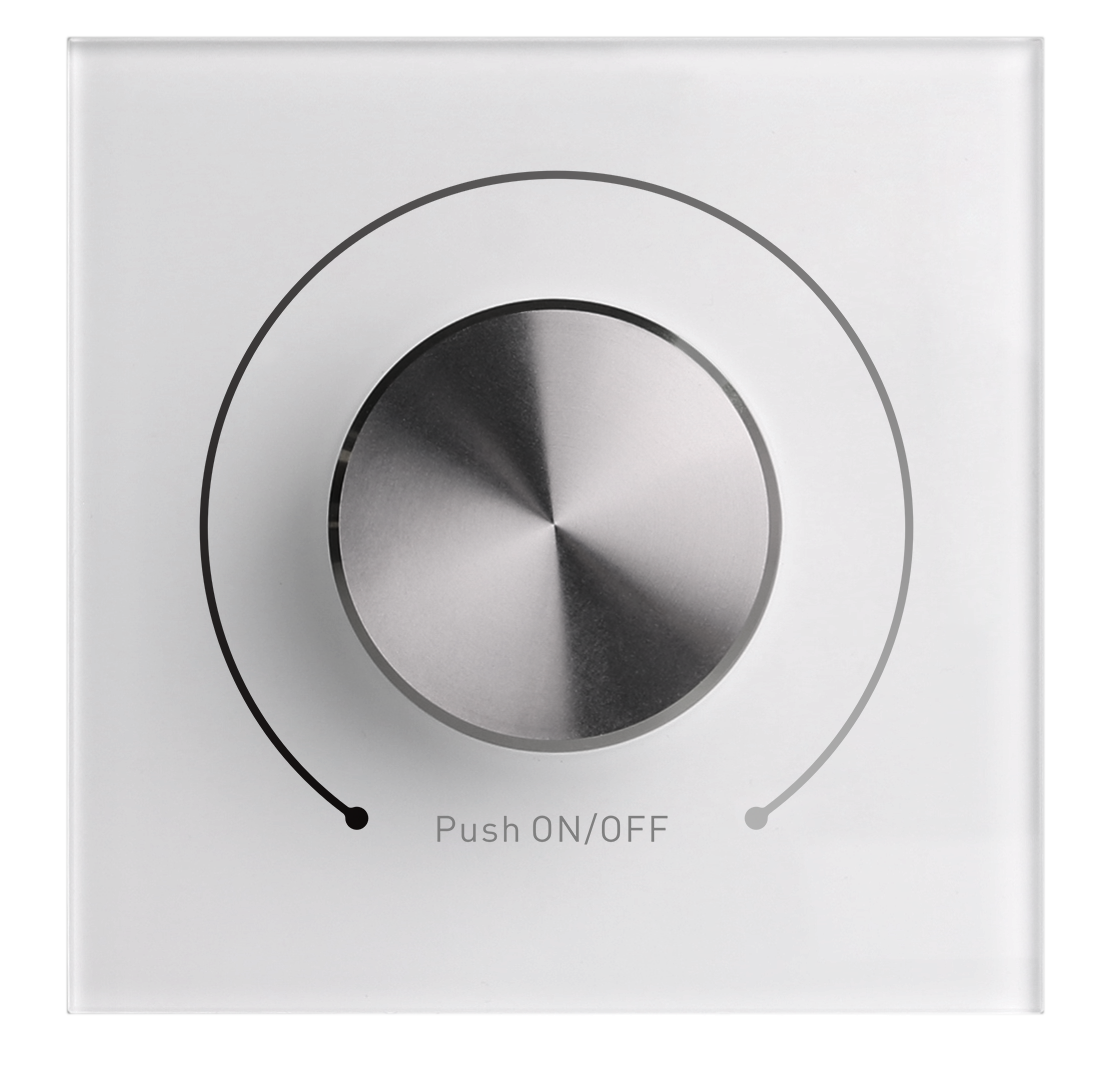

DALI MCU ROTARY DIMMER

DALI rotary master with DALI output

This device is a DALI MCU with built-in DALI bus power supply which can power DALI bus while connected with 100-240VAC mains. It also can be powered by DALI bus while not connected with AC mains.

There can be up to only 2 MCUs connect to AC 220V mains, the other MCUs powered by DALI bus.
Each control circuit simultaneously affords the integration of as many as 100 DALI ECG and of up to 4 DALI
MCU control devices (control points).

INSTALLATION INSTRUCTIONS

Technical Information
Code
Description
Input
Power Consumption
DALI Connection
IP Rating
Dimensions
Warranty
911-925 DALI MCU Rotary Dimmer 100-240V AC 2.3W max. DA+/DA-, max. 300m cable length, DALI power supply output current max 100mA. IP20 80x80x53mm  3 YEARS
