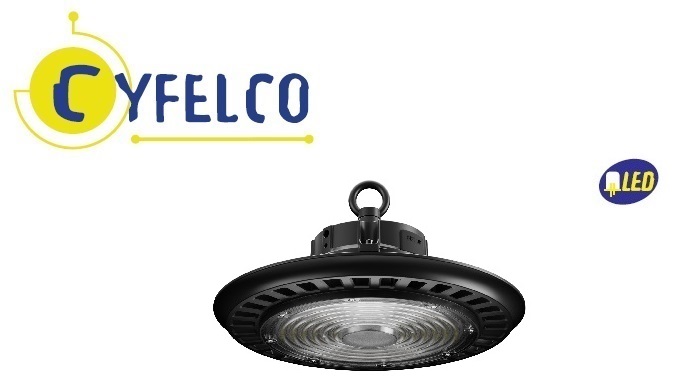

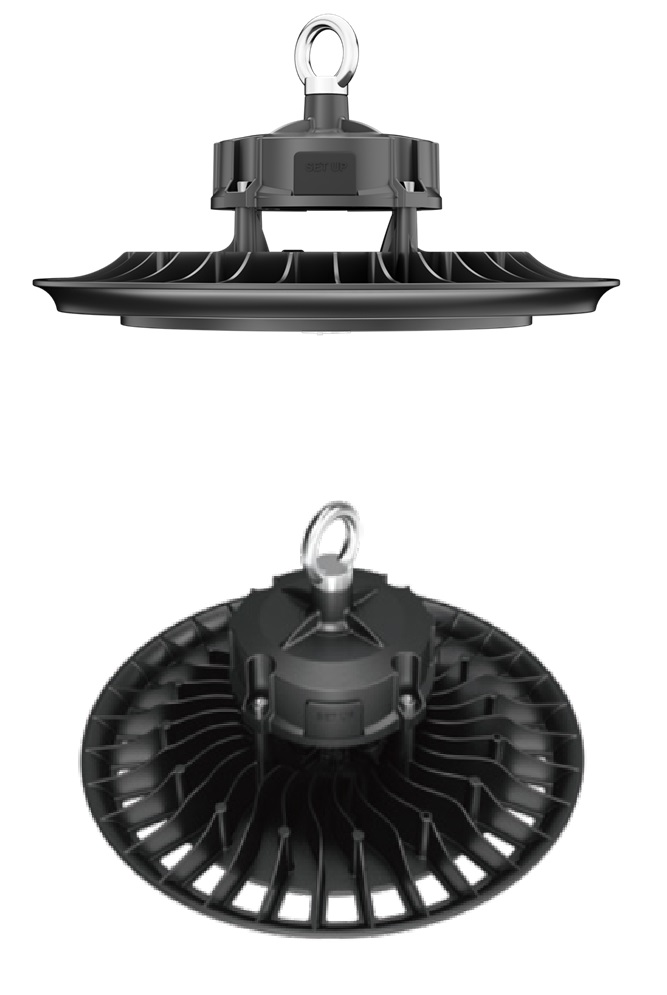

Cyfelco Round High Bay (UHB) is a powerful and economical solution. Its fin-like heat sink,and high quality LED chips and driver assure a long lifespan and superior durability.

The Cyfelco UHB is produced from aluminium and provides the perfect solution to some unique industrial projects. It complies to the following European Directives and Standards:
ISO 9001:2015 Quality Management System,
2014/35/EU Low Voltage Directive,
2014/30/EU Electromagnetic Compatibility Directive,
2011/65/EU RoHS Restrictions of Hazardous Substances Directive,

High efficiency up to 150Lm/W.
High Luminous Flux up to 28000 Lumens.
Powerand beam angle adjustable (3 levels).
Heat dissipation performance suitable for areas up to 45oC ambient temperatures.
Industrial use due to IP65.
Impact Protection IK08.
Extremely heat resistant driver technology.

We provide lighting solutions with the use of design and lighting software to achieve the lowest possible running and maintenance cost to minimize the level of the initial investment.

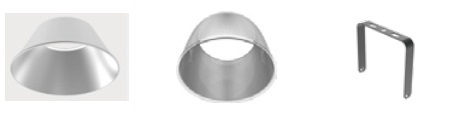

Options Upon Request:
Emergency 1-3hrs
PC clear reflector
Aluminium clear reflector
45o Bracket for ceiling and wall mounting

Product Information
TECHNICAL DATA
Code
Description
Nominal Voltage
CCT
WATT
(Lm/W)
Nominal Flux (Lumen)
Beam Angle
Ingress Protection
Impact Protection
Ra
Warranty
952-120 CYFELCO 2 UHB 100W 840 PS AC200~240V, 50~60Hz 4000K 60 150 9000 60o, 90o, 105o IP65 IK08 >80 5 YEARS
80 145 11600
100 140 14000
952-121 CYFELCO 2 UHB 100W 865 PS AC200~240V, 50~60Hz 6500K 60 150 9000 60o, 90o, 105o IP65 IK08 >80 5 YEARS
80 145 11600
100 140 14000
952-122 CYFELCO 2 UHB 150W 840 PS AC200~240V, 50~60Hz 4000K 90 150 13500 60o, 90o, 105o IP65 IK08 >80 5 YEARS
120 145 17400
150 140 21000
952-123 CYFELCO 2 UHB 150W 865 PS AC200~240V, 50~60Hz 6500K 90 150 13500 60o, 90o, 105o IP65 IK08 >80 5 YEARS
120 145 17400
150 140 21000
952-124 CYFELCO 2 UHB 200W 840 PS AC200~240V, 50~60Hz 4000K 110 150 16500 60o, 90o, 105o IP65 IK08 >80 5 YEARS
150 145 24750
200 140 28000
952-125 CYFELCO 2 UHB 200W 865 PS AC200~240V, 50~60Hz 6500K 110 150 16500 60o, 90o, 105o IP65 IK08 >80 5 YEARS
150 145 24750
200 140 28000
DIRECTIVES
2014/30/EU Electromagnetic Compatibility Directive
2014/35/EU Low Voltage Directive
2011/65/EU Restriction of Hazardous Substances Directive (RoHS)
2009/125/EU Ecodesign Requirements for energy-related products
APPLICABLE STANDARDS
EN 60598-1:2021 Luminaires part 1 General Requirements and Tests
EN 60598-2-1:2020 Part 2: Particular requirements-Section 1 Fixed general purpose luminaires
EN IEC 62031:2019+A11:2021 LED modules for general lighting. Safety specifications
EN IEC 55015:2019+A11:2020 Limits and methods of measurement of radio disturbance characteristics of electrical lighting and similar equipment
EN 61547:2009 Equipment for general lighting purposes - EMC immunity requirements
EN 62493:2015 Assessment of lighting equipment related to human exposure to electromagnetic fields
EN IEC 61000-3-2:2019+A1:2021 Electromagnetic compatibility (EMC) - Part 3-2: Limits - Limits for harmonic current emissions (equipment input current ≤16 A per phase)
EN 61000-3-3:2013+A1:2019 Electromagnetic compatibility (EMC) - Part 3-3: Limits - Limitation of voltage changes, voltage fluctuations and flicker in public low-voltage supply systems, for equipment with rated current less or equal to 16 A per phase and not subject to conditional connection
INSTALLATION INSTRUCTIONS
